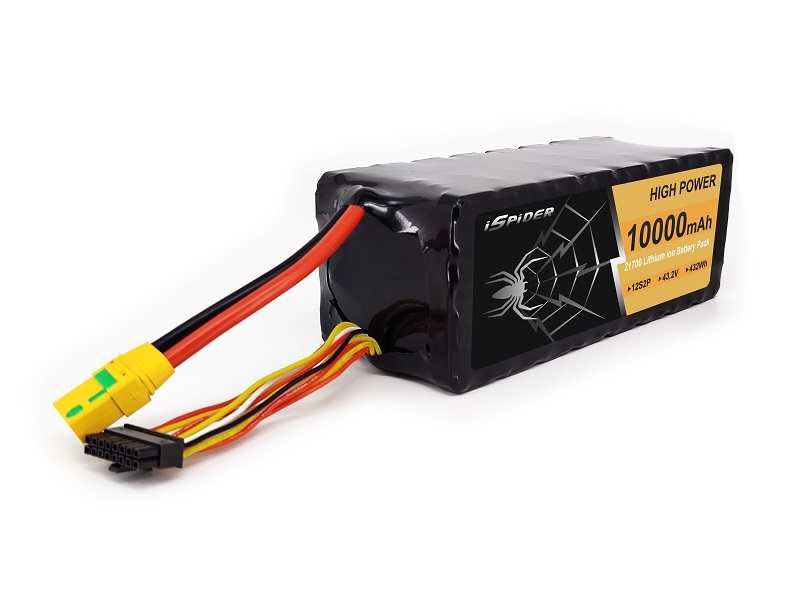

21700 12S Lithium ion Battery 12S2P 10000mAh 22.2V Li-ion Pack XT90 plug
Selected top ranking quality Li-ion cells like Samsung INR21700-50S, INR21700-40T, MOLI INR21700-P50B,INR21700-P42A or others, with robust welding technology by Miyachi welding machine
|
ITEM |
SPECIFICATION |
|
Model |
EV2170H-12S2P |
|
Connector |
AMASS XT90S-F, MOLEX 16pin, 18pin, 24pin, EC5, EC8 etc. |
|
Nominal Capacity |
10Ah |
|
Minimum Capacity |
9.6Ah |
|
Nominal Voltage |
21.6V |
|
Max. Charge Voltage |
25.2V |
|
Std. Charge Current |
0.5C, customized |
|
Max. Charge Current |
1.2C, customized |
|
Max. Continuous Discharge Current |
5C, customized |
|
Peak Discharge Current |
8C, customized |
|
Temperature |
Charge: 0~60
Discharge: -20~80 |
|
Dimension (max.) |
customized |
|
Weight |
1.90g |
|
OEM service |
Capacity/dimension/connector etc. |
Applicable to FPV drone and UAV.
EVVA is capable of providing the optimal Lithium-ion solutions for customers from different fields.
Our full-automatic production lines for cylindrical battery packs can gurantee you high quality based on high effienciency rate.
If any inquires on custom battery packs, contact us freely via [email protected].
