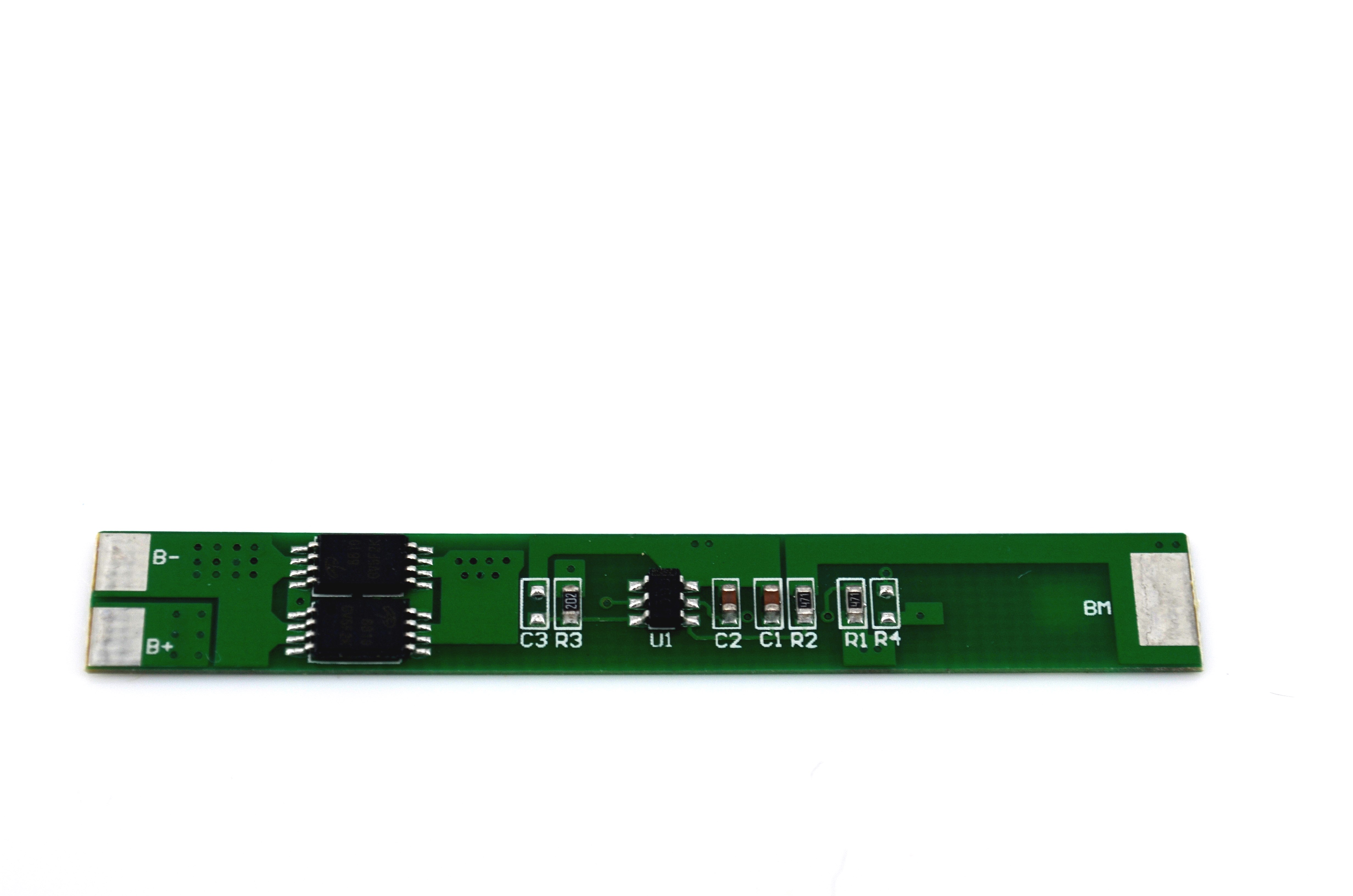

2S PCB/PCM for 2 Series 7.4V Li-ion Battery Pack EVVA-2004-A
Apply to protection of two cells lithium-ion battery pack, which is set according to requirement of customer.
Specifications
|
Item |
Specifications |
|
Model |
EVVA-2004-A |
|
PCB Material |
FR4 |
|
Dimension |
L55*W7.8mm |
|
Voltage |
DC 8.40V CC/CV |
|
Overcharge Detection Voltage |
4.35±0.05V |
|
Overcharge Detection Delay Time |
1.0±0.5mS |
|
Over Discharge Detection Voltage |
2.3±0.1V |
|
Over Discharge Detection Delay Time |
1.0±0.5ms |
|
Over Current Detection Voltage |
0.30±0.015V |
|
Over Current Detection Current |
3-5A |
|
Detection Delay Time |
1.0S |
|
Release Condition |
Cut load |
|
Detection Conditionp |
Exterior short circuit |
|
Detection Delay Time |
10mS |
|
Release Condition |
Remove the Load |
|
Normal Mode |
10uA |
